HPCE

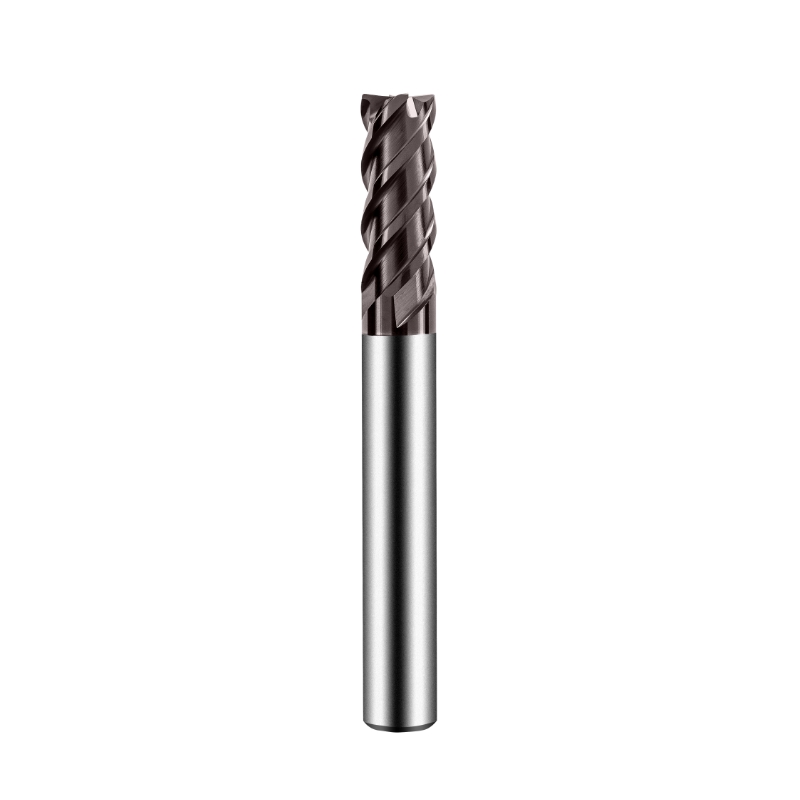

Corner Radius, 4-fluteBack
Detail
| unit: inch | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part No. | Cutting Dia. Dc | No. of Flutes | Flute Length Lf | Effective Length Leff | Corner Radius CR | Shank Dia. Ds | Oveall Length L | |
| HPCE04-4-08-08-30Roo | 3/64 | 4 | 1/8 | 1/8 | 0.01 | 1/4 | 2 | |
| HPCE05-4-10-10-30Roo | 1/16 | 4 | 5/32 | 5/32 | 0.01 | 1/4 | 2 | |
| HPCE06-4-11-11-30Roo | 5/64 | 4 | 3/16 | 3/16 | 0.01 | 1/4 | 2 | |
| HPCE07-4-12-12-30Roo | 3/32 | 4 | 1/4 | 1/4 | 0.01/0.015 | 1/4 | 2 | |
| HPCE08-4-13-13-30Roo | 1/8 | 4 | 5/16 | 5/16 | 0.01/0.015 | 1/4 | 2 | |
| HPCE11-4-16-16-30Roo | 3/16 | 4 | 1/2 | 1/2 | 0.01/0.015 | 1/4 | 2 | |
| HPCE12-4-18-18-30Roo | 1/4 | 4 | 5/8 | 5/8 | 0.01/0.015/0.03 | 1/4 | 2 | |
| HPCE14-4-21-21-32Roo | 3/8 | 4 | 4/5 | 4/5 | 0.01/0.015/0.02/ 0.03/0.06 | 3/8 | 3 | |
| HPCE16-4-23-23-32Roo | 1/2 | 4 | 1 1/8 | 1 1/8 | 0.01/0.015/0.02/ 0.03/0.06 | 1/2 | 3 |
