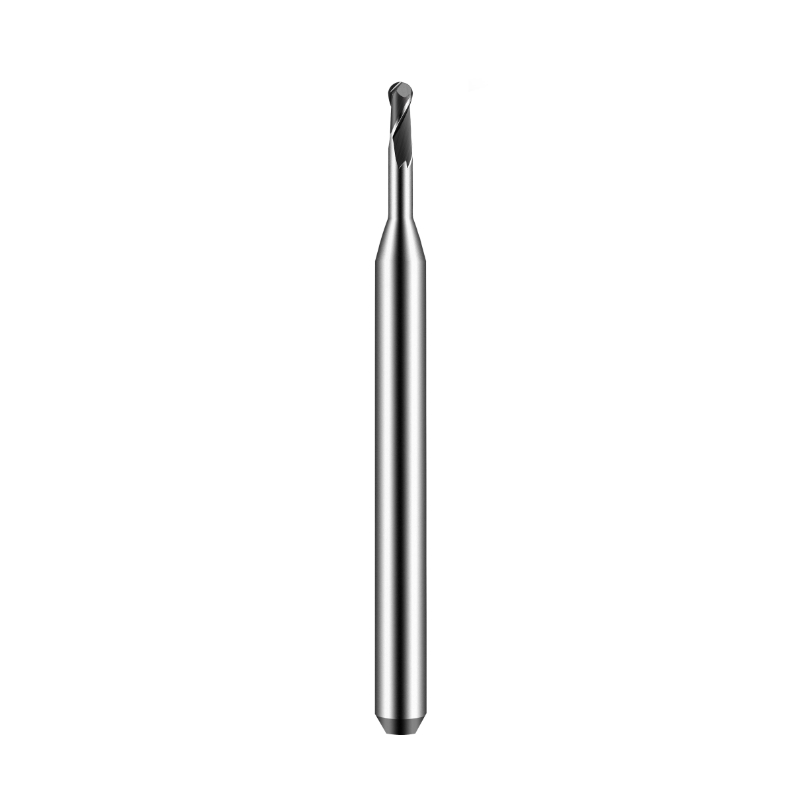

QMB, 2-flute

Back

Tolerance:

Dc : 0 ~ -0.02mm

Eff. Length Leff: +0.05 ~ +0.15mm

Ds: h5

Detail

						unit: mm
Part No.	Cutting Dia. Dc	No. of Flutes	Flute Length Lf	Effective Length Leff	Shank Dia. Ds	Oveall Length L
QMB02-2-0.4-0.4-50	0.2	2	0.4	0.4	4	50
QMB03-2-0.6-0.6-50	0.3	2	0.6	0.6	4	50
QMB04-2-0.8-0.8-50	0.4	2	0.8	0.8	4	50
QMB05-2-1-1-50	0.5	2	1	1	4	50
QMB05-2-1-2-50	0.5	2	1	2	4	50
QMB05-2-1-3-50	0.5	2	1	3	4	50
QMB05-2-1-4-50	0.5	2	1	4	4	50
QMB06-2-1-1-50	0.6	2	1	1	4	50
QMB06-2-1-2-50	0.6	2	1	2	4	50
QMB06-2-1-3-50	0.6	2	1	3	4	50
QMB06-2-1-4-50	0.6	2	1	4	4	50
QMB08-2-2-2-50	0.8	2	2	2	4	50
QMB08-2-2-4-50	0.8	2	2	4	4	50
QMB08-2-2-6-50	0.8	2	2	6	4	50
QMB1-2-2-2-50	1	2	2	2	4	50
QMB1-2-2-4-50	1	2	2	4	4	50
QMB1-2-2-6-50	1	2	2	6	4	50
QMB1-2-2-8-50	1	2	2	8	4	50
QMB1.5-2-3-3-50	1.5	2	3	3	4	50
QMB1.5-2-3-6-50	1.5	2	3	6	4	50
QMB1.5-2-3-8-50	1.5	2	3	8	4	50
QMB1.5-2-3-10-50	1.5	2	3	10	4	50
QMB1.5-2-3-12-50	1.5	2	3	12	4	50
QMB2-2-4-4-50	2	2	4	4	4	50
QMB2-2-4-8-50	2	2	4	8	4	50
QMB2-2-4-10-50	2	2	4	10	4	50
QMB2-2-4-12-50	2	2	4	12	4	50
QMB3-2-6-6-50	3	2	6	6	4	50
QMB3-2-6-10-50	3	2	6	10	4	50
QMB3-2-6-12-50	3	2	6	12	4	50
QMB3-2-6-16-50	3	2	6	16	4	50
QMB4-2-8-8-50	4	2	8	8	4	50
QMB6-2-12-12-50	6	2	12	12	6	50
QMB8-2-16-16-60	8	2	16	16	8	50
QMB10-2-20-20-75	10	2	20	20	10	50
QMB12-2-24-24-75	12	2	24	24	12	50
