DMB, 2-flute

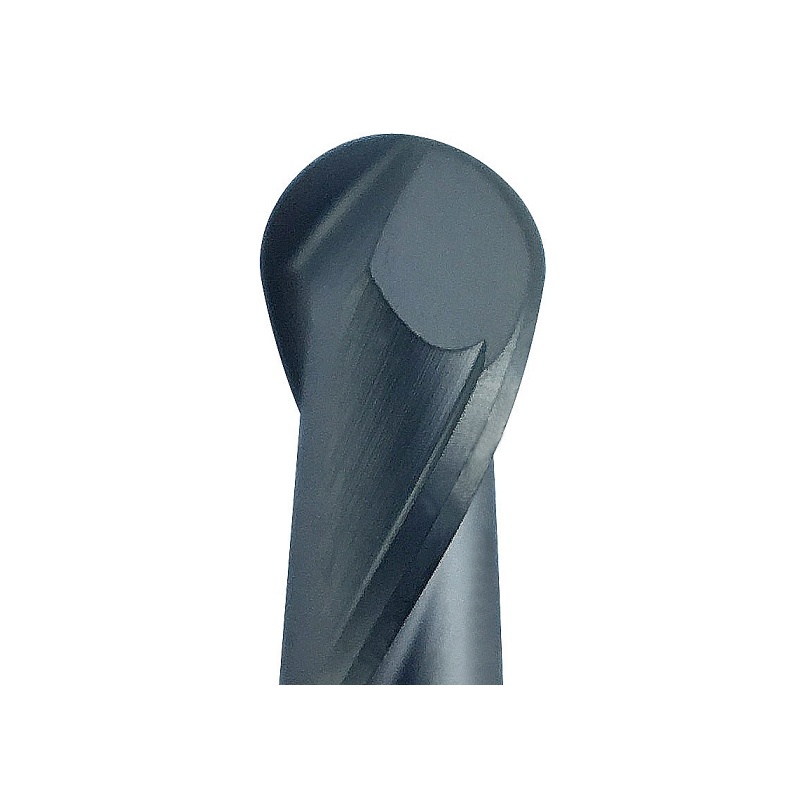

Ball nose, 2-fluteBack

Tolerance:

Dc < 3, 0 ~ -0.02mm

Dc ≥ 3, 0 ~ -0.025mm

Eff. Length Leff: +0.05 ~ +0.15mm

Ds: h5

Detail







unit: mm

Part No.Cutting
Dia.
Dc		 No.
of
Flutes		Flute
Length
Lf		Effective
Length
Leff		Shank
Dia.
Ds		Oveall
Length
L

DMB02-2-0.4-0.4-400.220.40.4340

DMB03-2-0.5-0.5-40
0.320.50.5340

DMB04-2-1-1-400.4211340

DMB04-2-1-2-400.4212340

DMB04-2-1-3-400.4213340

DMB04-2-1-4-400.4214340

DMB05-2-1-1-400.5211340

DMB05-2-1-4-400.5214340

DMB05-2-1-7-400.5217340

DMB05-2-1-10-400.52110340

DMB06-2-1-1-400.6211340

DMB06-2-1-5-400.6215340

DMB06-2-1-8-400.6218340

DMB06-2-1-12-400.62112340

DMB08-2-2-2-400.8222340

DMB08-2-2-7-400.8227340

DMB08-2-2-10-400.82210340

DMB08-2-2-15-400.82215340

DMB1-2-2-2-501222350

DMB1-2-2-6-501226350

DMB1-2-2-8-501228350*
DMB1-2-2-10-5012210350

DMB1-2-2-12-5012212350*
DMB1-2-2-14-5012214350*
DMB1-2-2-16-5012216350

DMB1-2-2-20-5012220350

DMB1-2-2-25-5012225350*
DMB1.2-2-2-2-501.2222350

DMB1.2-2-2-6-501.2226350

DMB1.2-2-2-8-501.2228350*
DMB1.2-2-2-10-501.22210350

DMB1.2-2-2-12-501.22212350*
DMB1.2-2-2-14-501.22214350*
DMB1.2-2-2-16-501.22216350

DMB1.2-2-2-20-501.22220350

DMB1.2-2-2-25-501.22225350*
DMB1.5-2-3-6-501.5226350

DMB1.5-2-3-8-501.5228350*
DMB1.5-2-3-10-501.52210350

DMB1.5-2-3-12-501.52212350*
DMB1.5-2-3-14-501.52214350*
DMB1.5-2-3-16-501.52216350

DMB1.5-2-3-20-501.52220350

DMB1.5-2-3-25-501.52225350*
DMB2-2-6-6-502266350

DMB2-2-6-10-5022610350

DMB2-2-6-12-5022612350*
DMB2-2-6-14-5022614350*
DMB2-2-6-16-5022616350

DMB2-2-6-20-5022620350

DMB2-2-6-25-5022625350*
DMB3-2-9-15-7532915375

*: modified from shorter effective length
