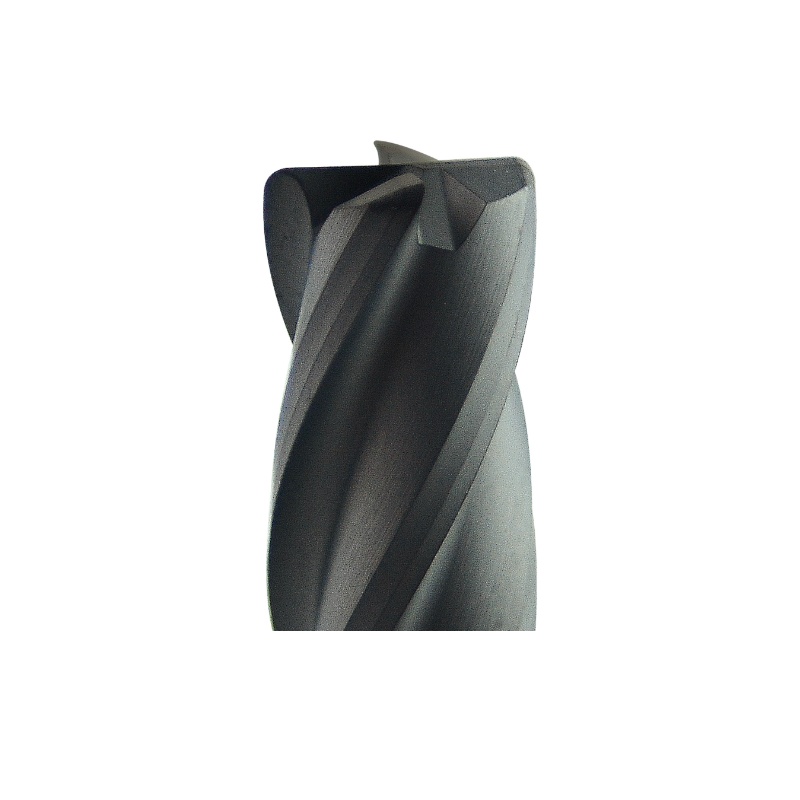

DMC, 4-flute

Back

Tolerance:

Dc < 3, 0 ~ -0.02mm

Dc ≥ 3, 0 ~ -0.025mm

Effective length Leff.: +0.05 ~ +0.15mm

Ds: h5

							unit: mm
Part No.	Cutting Dia. Dc	No. of Flutes	Flute Length Lf	Effective Length Leff	Corner Radius CR	Shank Dia. Ds	Oveall Length L
DMC2-4-6-6-50R0.2	2	4	6	6	0.2	3	50
DMC2-4-6-10-50R0.2	2	4	6	10	0.2	3	50
DMC2-4-6-12-50R0.2	2	4	6	12	0.2	3	50	*
DMC2-4-6-14-50R0.2	2	4	6	14	0.2	3	50	*
DMC2-4-6-16-50R0.2	2	4	6	16	0.2	3	50
DMC2-4-6-20-50R0.2	2	4	6	20	0.2	3	50
DMC2-4-6-25-50R0.2	2	4	6	25	0.2	3	50	*
DMC2-4-6-6-50R0.5	2	4	6	6	0.5	3	50
DMC2-4-6-10-50R0.5	2	4	6	10	0.5	3	50
DMC2-4-6-12-50R0.5	2	4	6	12	0.5	3	50	*
DMC2-4-6-14-50R0.5	2	4	6	14	0.5	3	50	*
DMC2-4-6-16-50R0.5	2	4	6	16	0.5	3	50
DMC2-4-6-20-50R0.5	2	4	6	20	0.5	3	50
DMC2-4-6-25-50R0.5	2	4	6	25	0.5	3	50	*
DMC3-4-9-15-75R0.2	3	4	9	15	0.2	3	75
DMC3-4-9-15-75R0.5	3	4	9	15	0.5	3	75
DMC4-4-15-20-75R0.3	4	4	15	20	0.3	4	75
DMC4-4-15-20-100R0.3	4	4	15	20	0.3	4	100
DMC4-4-15-20-75R0.5	4	4	15	20	0.5	4	75
DMC4-4-15-20-100R0.5	4	4	15	20	0.5	4	100
DMC6-4-20-25-60R0.3	6	4	20	25	0.3	6	60
DMC6-4-20-25-100R0.3	6	4	20	25	0.3	6	100
DMC6-4-20-25-150R0.3	6	4	20	25	0.3	6	150
DMC6-4-20-25-60R0.5	6	4	20	25	0.5	6	60
DMC6-4-20-25-100R0.5	6	4	20	25	0.5	6	100
DMC6-4-20-25-150R0.5	6	4	20	25	0.5	6	150
DMC8-4-25-35-100R0.5	8	4	25	35	0.5	8	100
DMC8-4-25-35-150R0.5	8	4	25	35	0.5	8	150
DMC10-4-25-35-100R0.5	10	4	25	35	0.5	10	100
DMC10-4-25-35-150R0.5	10	4	25	35	0.5	10	150
DMC10-4-25-35-100R1	10	4	25	35	1	10	100
DMC10-4-25-35-150R1	10	4	25	35	1	10	150
DMC12-4-25-35-100R0.5	12	4	25	35	0.5	12	100
DMC12-4-25-35-150R0.5	12	4	25	35	0.5	12	150
DMC12-4-25-35-100R1	12	4	25	35	1	12	100
DMC12-4-25-35-150R1	12	4	25	5	1	12	150
*: modified from shorter effective length
